What is the difference between Cat6 and Cat6A network cabling?

Cat6 supports up to 10 Gigabit speeds at distances up to 165 feet (55 meters) and 1 Gigabit up to 328 feet (100 meters). Cat6A features thicker copper conductors and augmented shielding that supports full 10 Gigabit speeds up to the full 328-foot maximum distance, making it ideal for high-density server closets, 4K video streaming networks, and future-proof corporate backbones.

Why avoid cheap Copper Clad Aluminum (CCA) cables?

CCA cables use aluminum wire thinly coated in copper. They violate National Electrical Code (NEC) standards, brittle easily during pull-throughs, suffer extreme signal attenuation, and pose serious fire hazards when carrying Power over Ethernet (PoE) current. We strictly use 100% Solid Bare Copper UTP/STP 23AWG cabling.

Can you install cabling in existing finished walls without destroying the drywall?

Yes. Our skilled technicians specialize in low-impact wall fishing. We use flex rods, fiberglass fish tapes, and attic/crawlspace routes to drop Cat6 cables cleanly into hollow wall cavities, terminating them into flush single-gang wall plates with minimal or zero drywall damage.

Do you provide network rack cleanup and patch panel re-organization?

Yes. We transform messy “spaghetti monster” server rooms into pristine, color-coded, labeled rack setups. We trace legacy lines, purge dead cables, install horizontal cable managers, and re-patch connections with custom-length slim patch cords.

Is your cabling work performed by licensed technicians?

Yes. All low-voltage network cabling and security installations are executed in partnership with licensed contractor Jericho Security and Sound, Texas Class B Security Contractor License Number B13764.

Network cable installation Fort Worth TX Cat6 ethernet cabling header background image

Licensed Texas Partner: Jericho Security and Sound (B13764)

Network Cable Installation & Structured Cabling Fort Worth TX

High-speed Cat6 and Cat6A ethernet cabling, server rack patch panel terminations, Wireless Access Point (WAP) drops, and fiber optic backbones for Fort Worth businesses, warehouses, medical offices, and custom homes. 100% solid copper, Fluke-tested infrastructure engineered for reliable local network performance.

100% Solid Bare Copper

Fluke Cable Tested

Plenum and Riser Rated

1-Year Labor Warranty

Call 817-231-2962

TX License B13764

Jericho Security & Sound

Gigabit / 10G Speeds

Certified Cat6 and Cat6A

Server Rack Cleanups

Patch Panel Labeled

Fluke Verified

100% Signal Pass Rate

2203 8th Ave HQ

Fort Worth Dispatch

The Digital Backbone of DFW Businesses and Homes

Flawless Low-Voltage Structured Cabling Infrastructure in Fort Worth

In today’s hyper-connected business landscape, sluggish wireless connections, dropped VoIP phone calls, and buffer-prone security camera feeds are almost always caused by inferior, unorganized network cabling. Wireless signals suffer from drywall attenuation, microwave interference, and metal stud reflection, while properly designed structured cabling delivers consistent speed and uptime.

At Fort Worth Security Cameras, we design and install high-performance structured low-voltage cabling networks that power local Fort Worth businesses, corporate offices, industrial distribution centers, medical clinics, and modern residences. Every cable run is neatly routed through J-hooks, terminated onto high-density patch panels, and systematically labeled for immediate troubleshooting and future expansion.

Licensed Low-Voltage Contractor: Jericho Security and Sound (B13764)

All structured cabling, IP security camera drops, and telecom wiring projects are executed under Texas Class B Security Contractor License B13764 held by our partner Jericho Security and Sound. We adhere strictly to ANSI/TIA-568 cabling standards and National Electrical Code (NEC) fire ratings for safe, compliant installations across Fort Worth and Tarrant County.

Structured Cabling Core ServicesCat6 / Cat6A

Commercial Data and Voice Drops

Workstation RJ45 drops, IP desk phones, network printers, and smart TV displays for offices, retail, and multi-tenant spaces.

Wireless Access Point (WAP) Cabling

Ceiling Cat6 runs powering Ubiquiti, Cisco, Aruba, or Meraki WiFi 6/6E access points for whole-building wireless coverage.

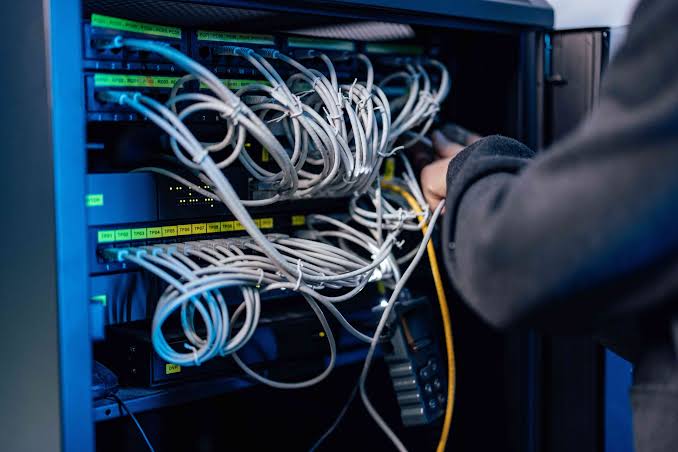

Server Closet Rack Cleanup and Re-Wiring

Untangling cable clutter, installing rack managers, and re-patching with custom slim leads to create clean, support-friendly network closets.

Media and Cable Standards

Low-Voltage Media Solutions Built for Peak Performance

We engineer custom wiring infrastructure suited to your facility’s environmental and bandwidth demands:

Cat6 Solid Copper Cable Drops

23AWG unshielded twisted pair (UTP) rated for 1 Gigabit up to 328ft and 10 Gigabit up to 165ft. Ideal for corporate desktop workstations, POS registers, smart TVs, and IP surveillance cameras.

Cat6A Augmented Shielded (STP)

Foil-shielded cabling designed for high-density 10 Gigabit ethernet channels up to 328ft. Eliminates alien crosstalk in industrial plants with heavy machinery, high-voltage lines, or medical imaging equipment.

Plenum CMP Fire-Rated Cabling

Teflon-jacketed low-smoke cabling mandated by Fort Worth commercial fire codes for drops routed through air plenum ceilings, HVAC returns, and drop-tile commercial ceilings.

Patch Panel Rack and Wall Mounts

24-port and 48-port RJ45 keystone patch panels housed inside 19-inch 2-post server racks, enclosed wall-mount cabinets, or hinged wall brackets with organized rear strain-relief bars.

Fiber Optic Backbones and Inter-Building

Single-mode (OS2) and multi-mode (OM3/OM4) fiber optic trunks connecting separate building wings, detached warehouses, or floor-to-floor network closets beyond the 328ft copper limit.

Coaxial RG6 and Audio/Video Feeds

Quad-shielded RG6 coaxial cabling for cable TV feeds, digital signage, SDI camera signals, and commercial video distribution across sports bars, waiting rooms, and conference rooms.

Structured Cabling Hardware and Standard Specifications

Commercial-grade cabling specifications engineered to ANSI/TIA and NEC safety codes:

Cabling Category	Conductor and Shielding	Max Bandwidth and Distance	Recommended Application
Cat6 Solid Copper	23AWG 100% Bare Copper UTP	1 Gbps @ 328ft / 10 Gbps @ 165ft	Workstation PCs, IP Cameras, Smart TVs
Cat6A Shielded (STP)	23AWG Solid Copper + Foil Shielding	10 Gbps @ 328ft (Full Distance)	Server Interlinks, Healthcare, Industrial
OM3/OM4 Multi-Mode Fiber	50/125µm Aqua Fiber Glass Core	10G to 40G up to 1,000+ ft	Intra-building MDF to IDF Closet Backbones
OS2 Single-Mode Fiber	9/125µm Yellow Fiber Glass Core	10G to 100G up to 6.2 miles	Inter-building Campus Links and Long Hauls

Related Fort Worth low-voltage services

Network cabling is often installed alongside other security and communications systems. Our Fort Worth team provides integrated low-voltage solutions so your structured cabling, cameras, phones, and web presence all work together.

Explore additional local services:

Fort Worth commercial security camera installation Fort Worth residential security camera installation Business communications and VoIP cabling

Got Questions?

Network Cable Installation FAQs

Answers to common low-voltage cabling questions from Fort Worth clients:

The cost for a commercial or residential Cat6 ethernet cable drop in Fort Worth typically ranges between $125 and $250 per run depending on the building layout, ceiling height, distance to the server rack, and whether plenum (CMP) or riser (CMR) fire-rated cable is required. Volume discounts apply for multi-run office or warehouse installations.

Licensed Texas Low-Voltage Partner (B13764)

Schedule a Free On-Site Structured Cabling Assessment

Contact Leroy Reber and our Fort Worth low-voltage installation team today. We perform site walks, calculate cable drop runs, and provide an itemized proposal for your network cabling project.
